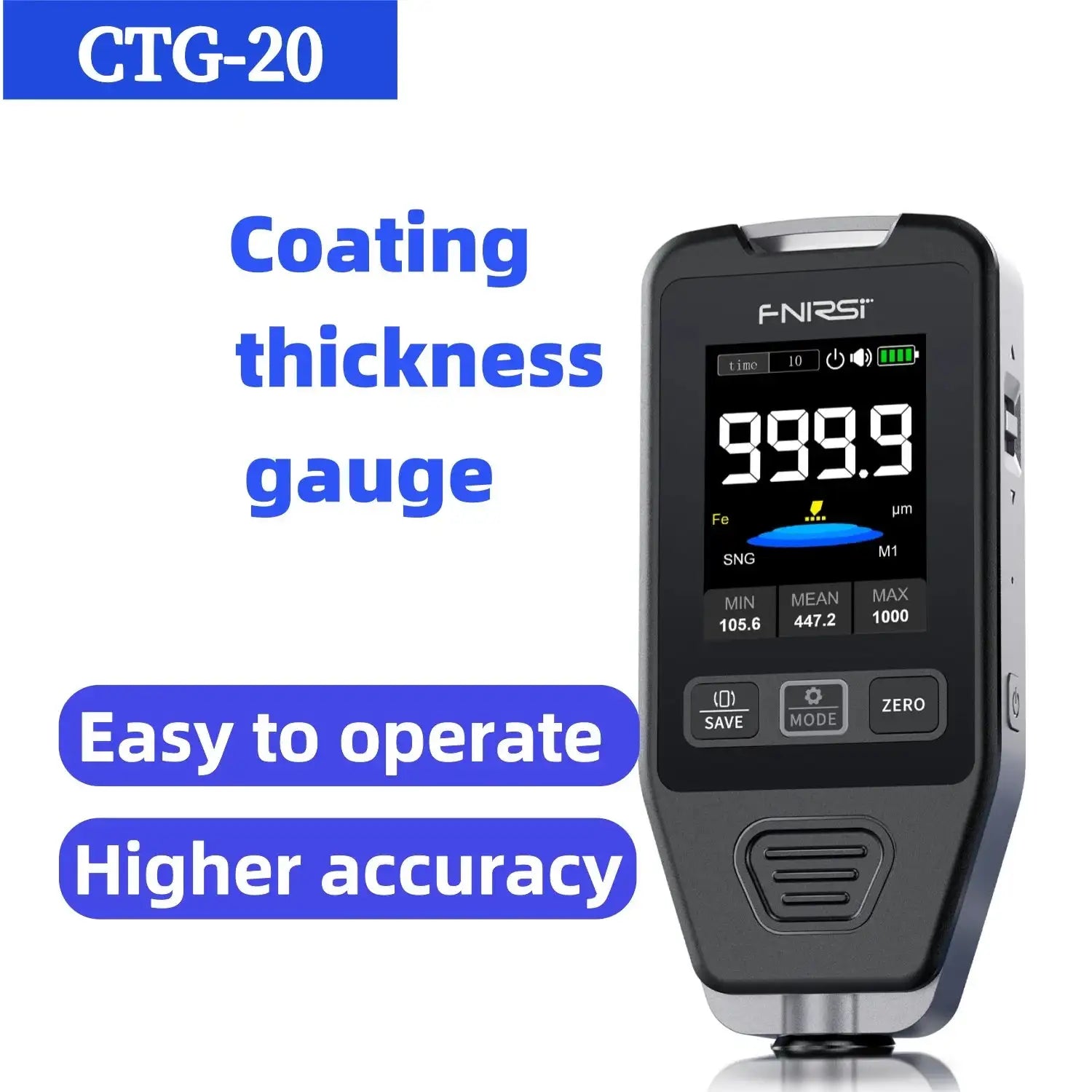

Fnirsi Ctg-20 Car Paint Thickness Gauge 0-1400um Coating

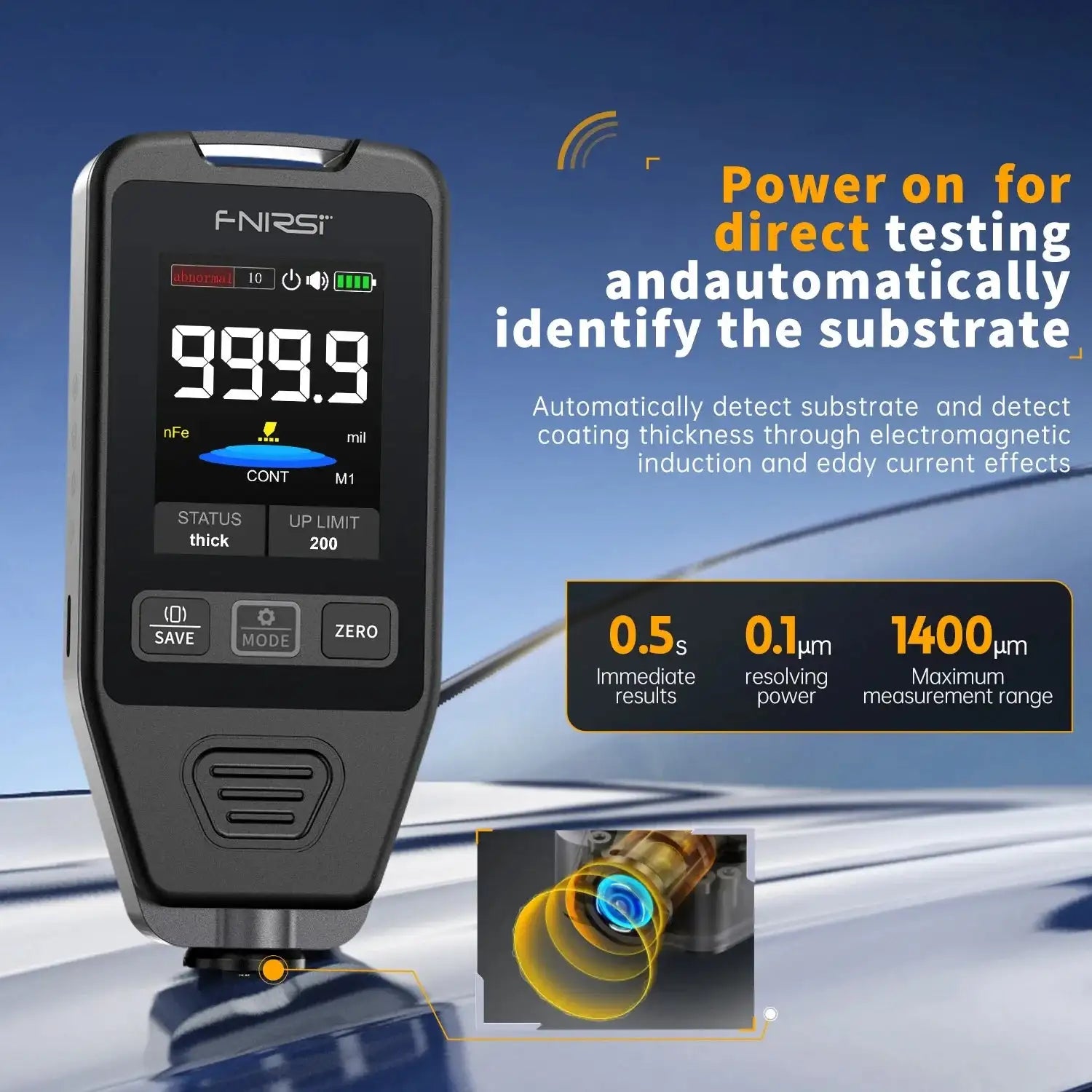

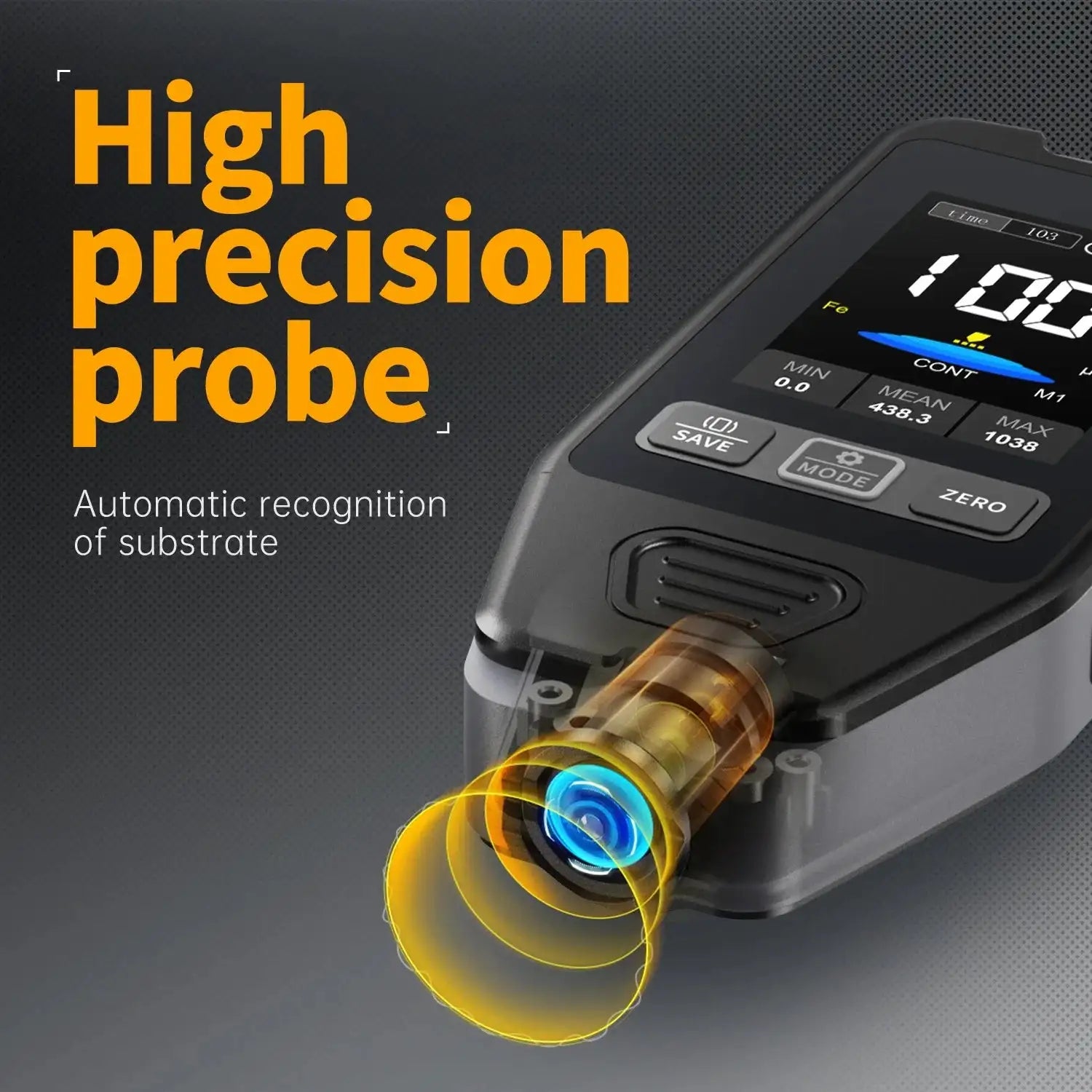

Meet the Fnirsi CTG-20 Car Paint Thickness Gauge — a compact, high-precision device designed to measure coating thickness on metal surfaces with ease. Using advanced electromagnetic induction and eddy current technology, this gauge delivers non-destructive, fast, and accurate readings of paints and electroplated coatings on both ferrous and non-ferrous materials. Its automatic substrate detection and built‑in backlight make it ideal for automotive refinish shops, manufacturing QA, and quality control laboratories. Calibrate quickly with zero-point or multi-point calibration to ensure consistent accuracy across substrates. With a robust 600mAh battery, the CTG-20 provides reliable performance when you need it most. Providing quality and trusted service since 2002 at intercyprus.com.

Benefits & Tips

• Non-destructive coating testing for ferrous and non-ferrous metals—perfect for automotive, manufacturing, and field inspections.
• Fast, accurate readings (0–1400 μm) with ±3% + 2 μm accuracy and 0.1 μm resolution, plus automatic substrate detection to simplify setup.
• Flexible calibration—zero-point and multi-point calibration options ensure reliable results across different coatings and substrates; backlit display aids readability in dim environments.

Product Specifications

• Model: CTG-20 / CTG-202
• Measuring Range: 0–1400 μm
• Accuracy: ±3% + 2 μm
• Resolution: 0.1 μm
• Unit: μm / mil
• Calibration: Zero point calibration; Multi-point calibration
• Mini Convex Curvature Radius: 5 mm
• Mini Concave Curvature Radius: 25 mm
• Mini Measurement Area Diameter: 20 mm
• Backlight: Yes

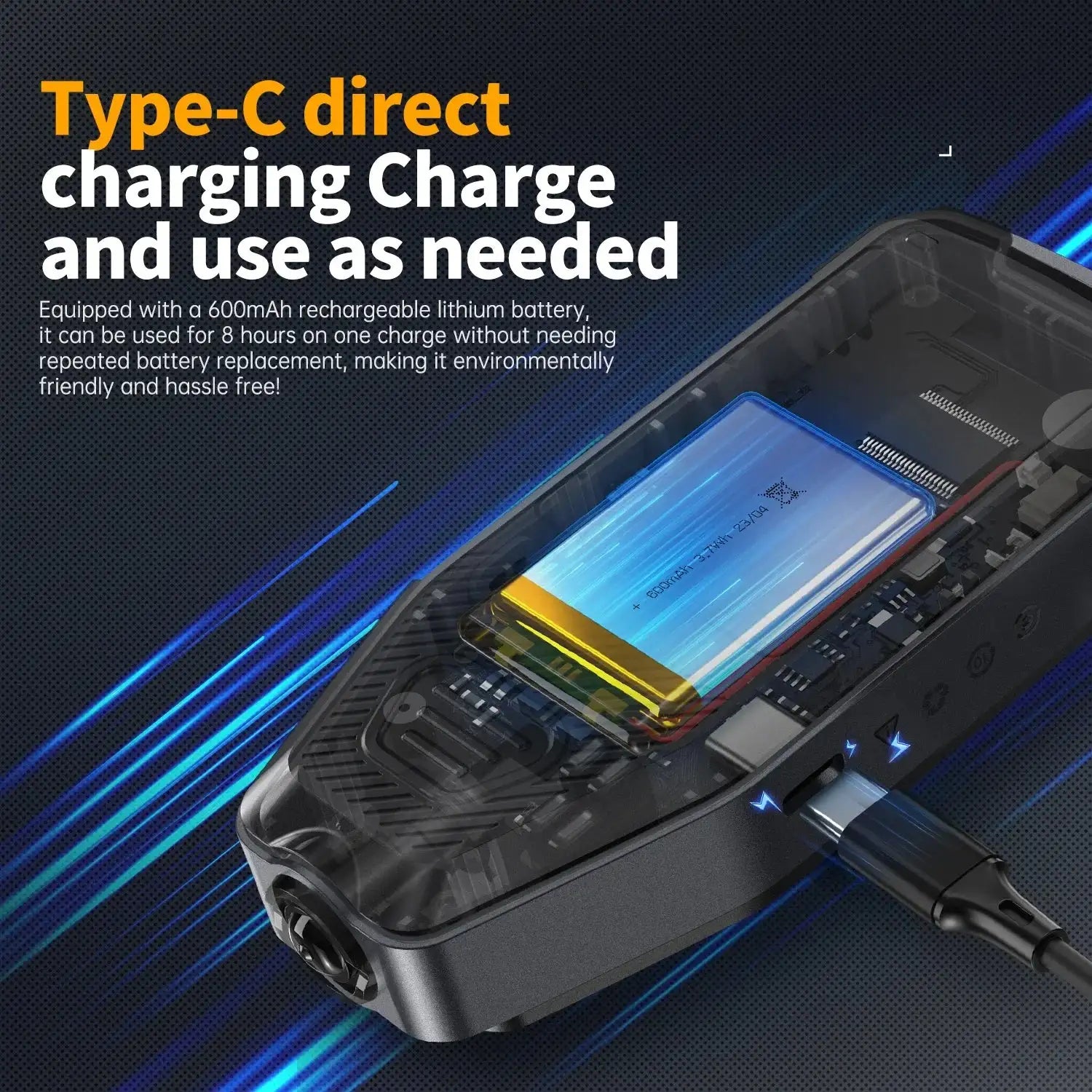

• Battery: 600 mAh Lithium
• Size: 115 x 48 x 18 mm
• Weight: About 83 g
• Working Temperature: -10℃ to +50℃
• Humidity: 20% - 90% RH
• Data Storage: Supported

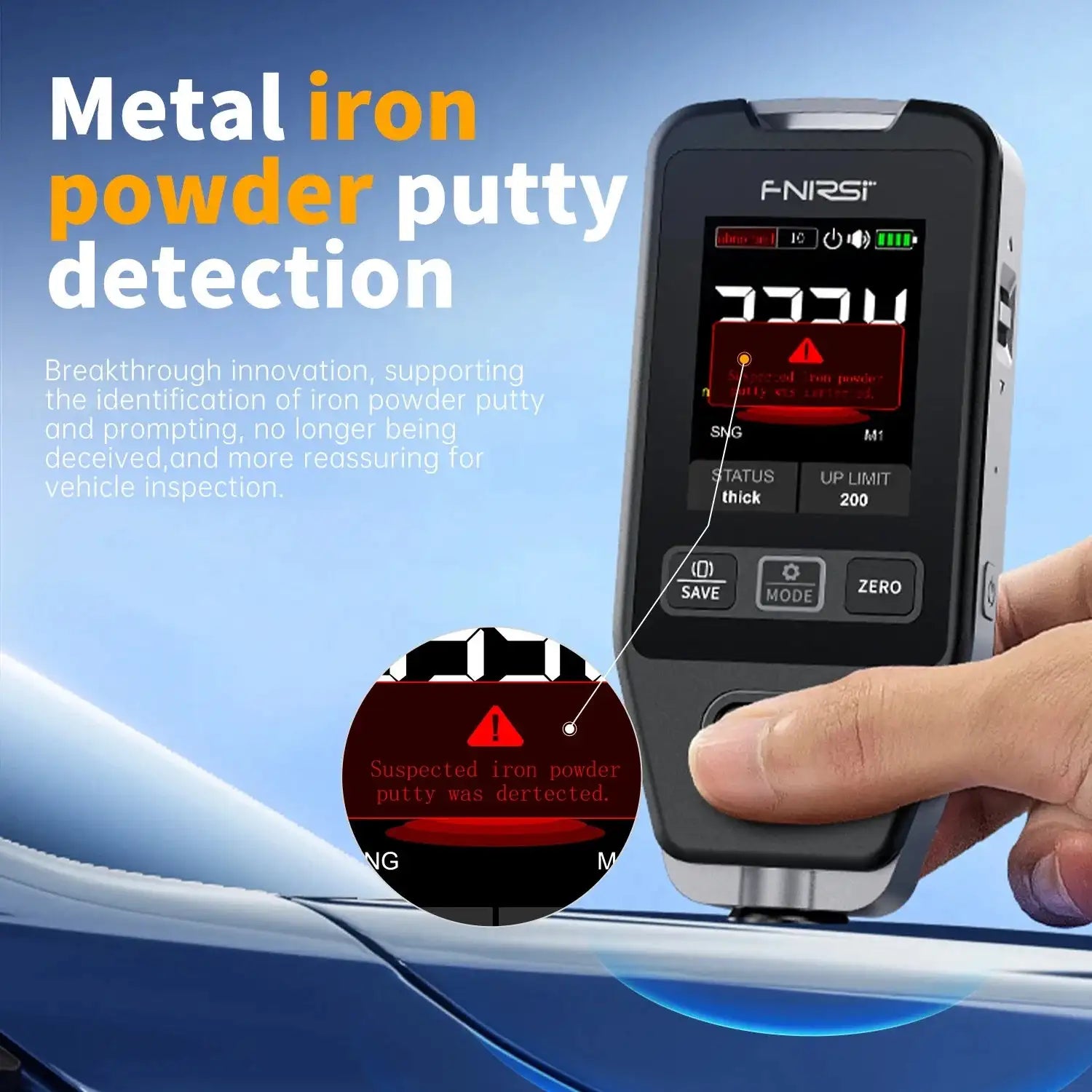

• Putty Powder Test: Supported
• Rotatable Screen: Supported
• Auto Power Off: Supported
• Included Accessories: Ferrous calibration substrate, Non-Ferrous calibration substrate, Calibration sheets (50/100/250/500/1000 μm), USB data cable, User manual

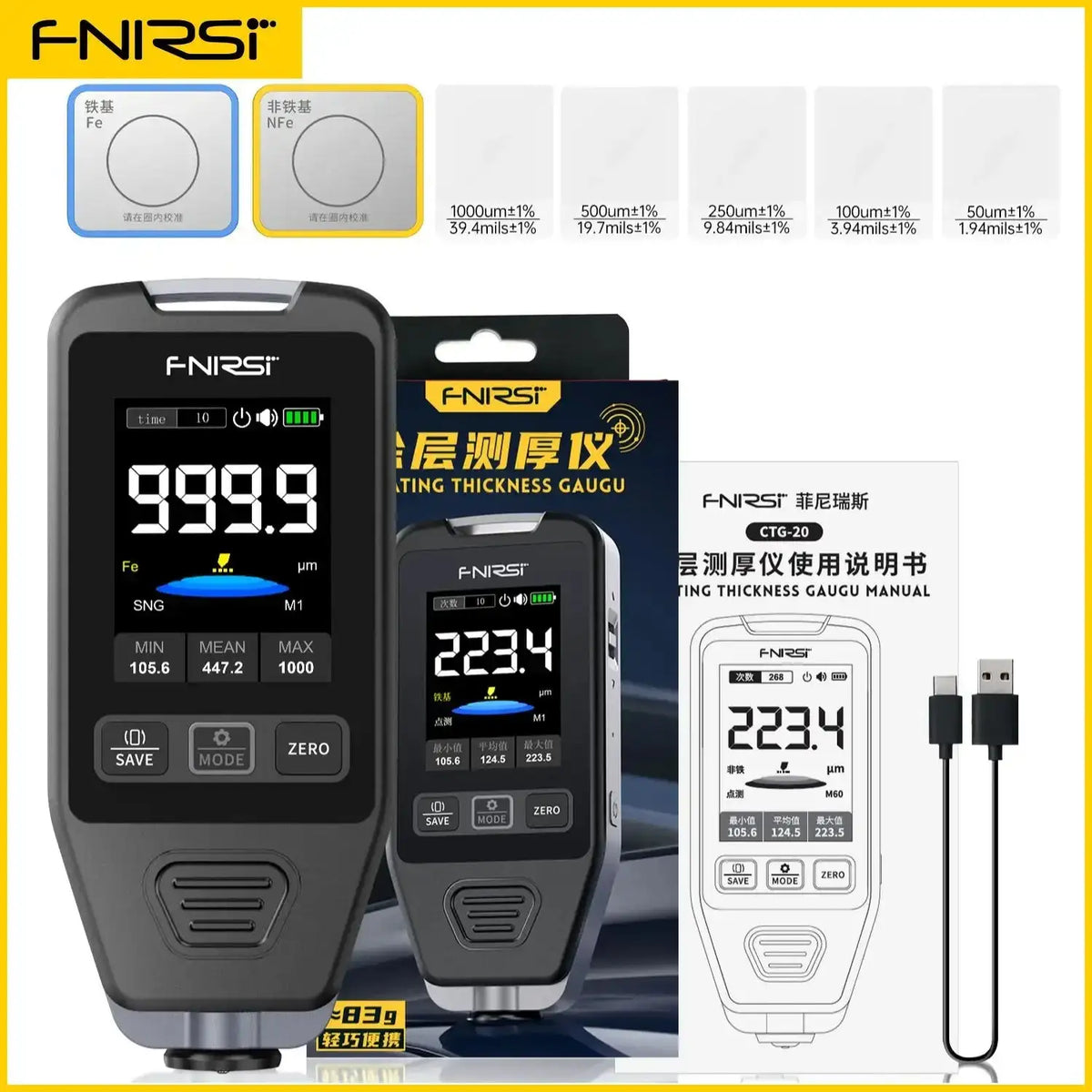

Package includes:

• CTG-20 coating thickness gauge
• Ferrous calibration substrate
• Non-Ferrous calibration substrate
• 50/100/250/500/1000 μm calibration sheets
• USB data cable
• User manual

Warnings / Reminders

• The curvature of the substrate to be tested is too steep.
• The area of the substrate to be tested is too small.
• The surface of the substrate to be tested is rough.
• There is a strong magnetic field nearby.
• The ambient temperature/humidity changes significantly.
• Insufficient battery; please charge in time.
